M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector

Name: M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
Brand: RiTian
Price: 1 USD

M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector Manufactures

Brand Name : RiTian

Model Number : M16 M12 connector

Certification : CE RoHS

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 2000 each week

Delivery Time : 5 to 8 working days

Packaging Details : Standard Exported Cartons and Pallets

Model : M16 connector

application : Automotive / Automation / Industry / Camera / LED etc

termination : solder

Gender : Male/ Female

PIn : 2 3 4 5 5A 6 7 8 12 14 16 19 24 Pin

Orientation : straight / right angle

mounting type : PCB Mount / Panel Mount / Cable

rated current : 7A for 2/3 pin, 6A for 4/5 pin, 3A for 12/14/19 pin, 1A for 24 pins

Contact Now

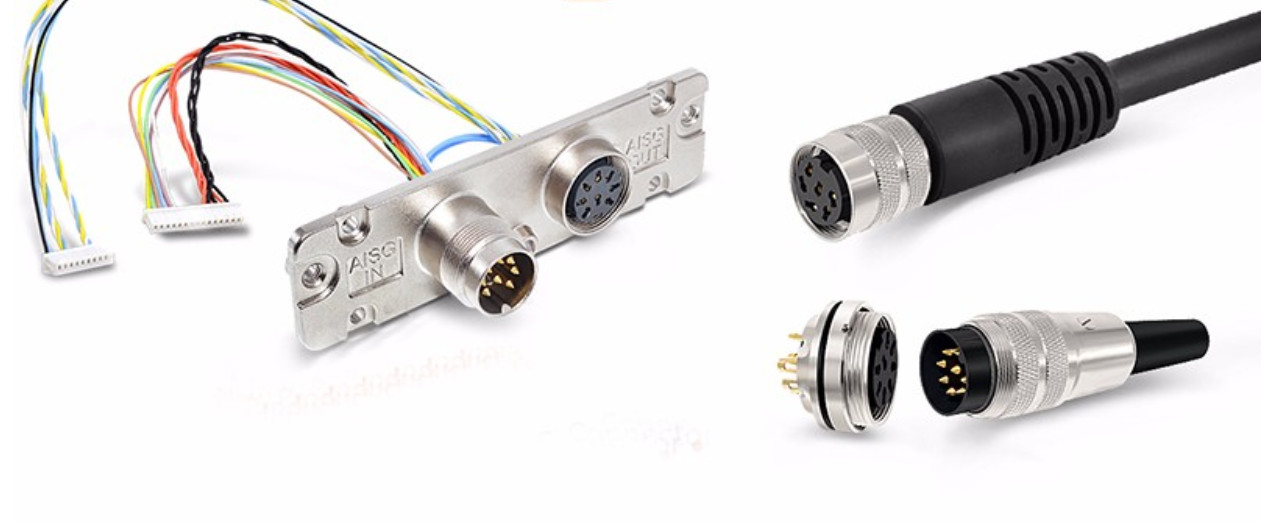

M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector

The Antenna Interface Standards Group (AISG) creates and maintains standards for the control and monitoring interface between a base station and a variety of tower-top equipment. These include antennas with remote electrical tilt (RET), tower mounted amplifiers and a variety of sensors that are used to monitor the operation of tower-top equipment. These are referred to as subunits. A complete list of those currently supported can be found here.

Product Fetures

1.Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;

2.Resistant to welding spark,continually twist ;

3.Resistant to oil,coolant ,lubricant and emulsion;

4.Pin configurations:2,3,4,5,7,8,12,14,19,24 properties ;

5.Shield and un-shield Version Available with metal or plastic housing;

6.Meet IP67/IP68 waterproof requirements;

7.Temperature Range:-25℃ ~ +85℃;

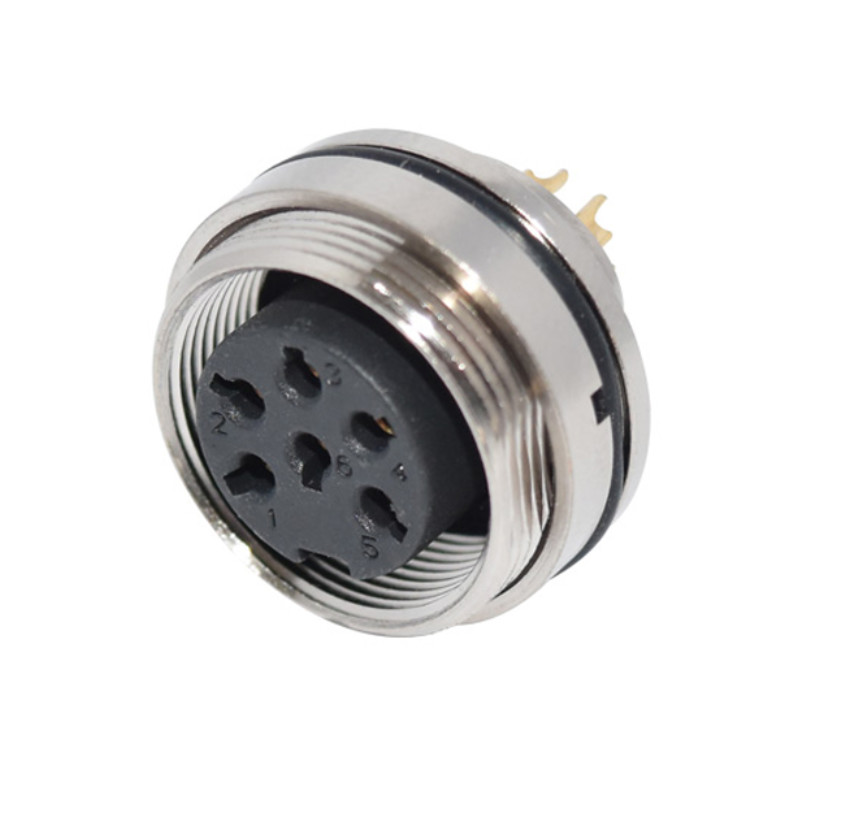

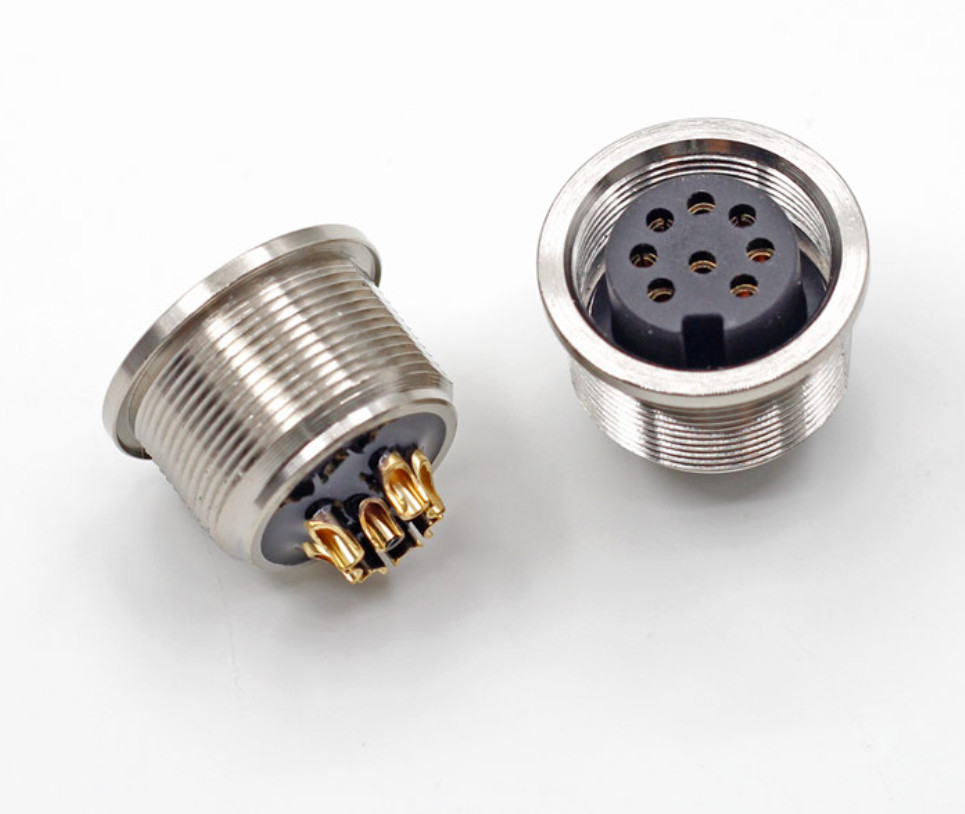

Item Name	M16 Socket Connector
Number of contacts	2; 3; 4; 5; 6; 7; 8; 12
Connector locking system	Screw
Termination	Solder
Wire guage	Max. 0.75mm²(Max.AWG20); Max. 0.25mm²(Max.AWG24)
Cable outlet	4-6 mm; 6-8 mm; 8-10 mm
Degree go protection	IP67
Mechanical operation	>500 mating cycles
Temperature range	(-30°-95°)
Rated voltage	250V; 125V; 60V
Rated im pulse voltage	1500V; 800V; 500V
Pollution degree	1
Overvoltage categorie	I
Material group	Ⅲ
Rated current(40°)	7A; 6A; 5A; 3A
Contact resistance	<=3mΩ (Gold)
Material of contact	Brass
Contact plating	Gold
Material of contact body	PA
Material of housing	CuZn

M12 M16 solder type 5 pin 8 pin waterproof Antenna Male Female PCB panel mount AISG connector
